Thermocouple (Type K) "Sheathed Type" (fluororesin coated) Max. operating temp: 260°C, Tolerance: Class 1 (±1.5°C or ±0.4%), waterproof (IP67)
Thermocouple (Type K) "Sheathed Type" (fluororesin coated) Max. operating temp: 260°C, Tolerance: Class 1 (±1.5°C or ±0.4%), waterproof (IP67)
受取店舗名THREEHIGH
224-0023
Kanagawa 横浜市 都筑区東山田4-42-16
Japan
This is a stainless steel sheath tube filled with inorganic insulator
at high pressure through a thermocouple element, and is
excellent in sensitivity, vibration resistance, and economical
efficiency.
However, the durability of measurement in a high-temperature
activated gas atmosphere may be extremely poor.
Please consult us in advance.
Thermocouple K has a linear relationship between temperature and thermoelectric power, and is the most standard thermocouple for industrial use.
This temperature sensor is compatible with the ThreeHigh Digital Temperature Controller monoOne Series.If your temperature controller is compatible with the thermocouple K and Pt100Ω, it can be used.
Max. operating temp: 260°C, Tolerance: Class 1 (±1.5°C or ±0.4%), waterproof (IP67)

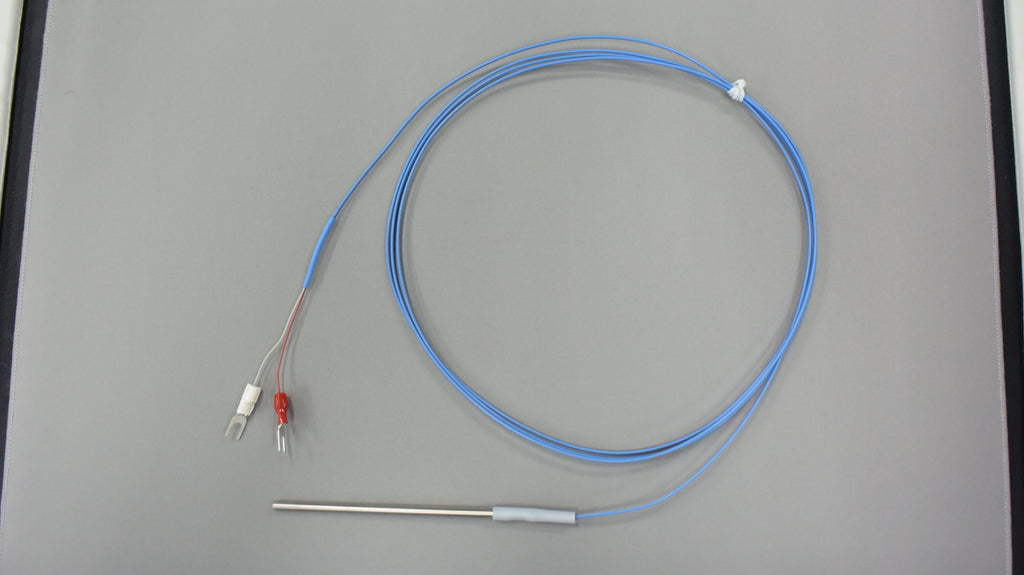

| Model No. | TH-8100-2 |
|---|---|
| ρEmm) | 3.2 |
| L1(mm) | 100 |
| L2(m) | 2.0 |
| In stock | 〇 |
* The TH-8100-2 is waterproof.
