Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)
Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)

threehigh3810

Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)

¥9,900
L(m):1
Quantity:
Pickup available at 受取店舗名THREEHIGH Usually ready in 5+ days

Temperature Sensor with Thermocouple (Type K) "Sheet Type" Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)

1

受取店舗名THREEHIGH

Pickup available, usually ready in 5+ days

224-0023
Kanagawa 横浜市 都筑区東山田4-42-16
Japan

+8100455905561

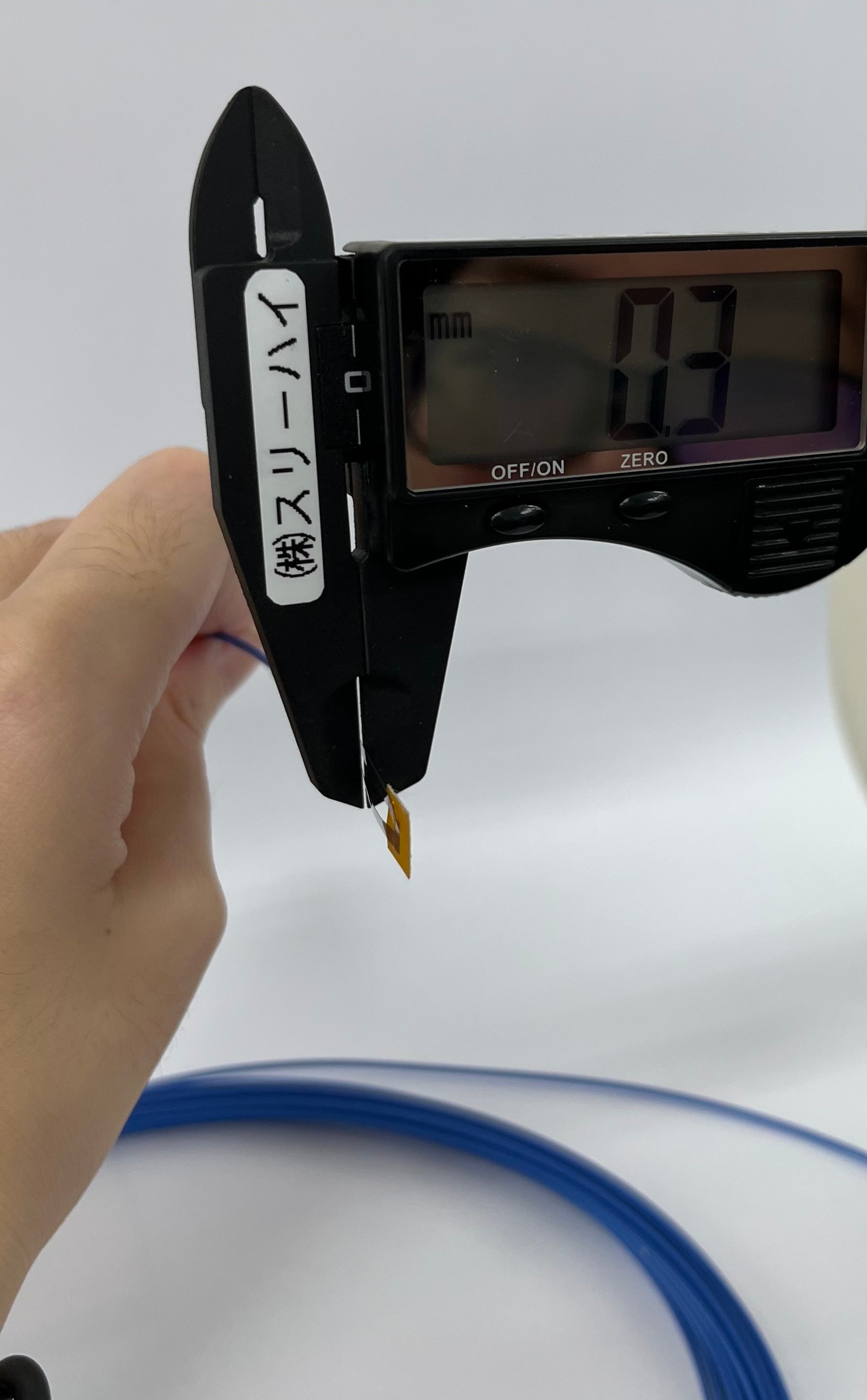

This is formed of a thermocouple on an insulating sheet, and is suitable for measuring surface temperature.
It is a sheet-like thermocouple that is stuck on the surface of the object to measure surface temperature quickly and accurately.

Thermocouple K has a linear relationship between temperature and thermoelectric power, and is the most standard thermocouple for industrial use.
This temperature sensor is compatible with the ThreeHigh Digital Temperature Controller monoOne Series.If your temperature controller is compatible with the thermocouple K and Pt100Ω, it can be used.

Max. operating temp: 200°C, Tolerance: Class 2 (±2.5°C or ±0.75%)

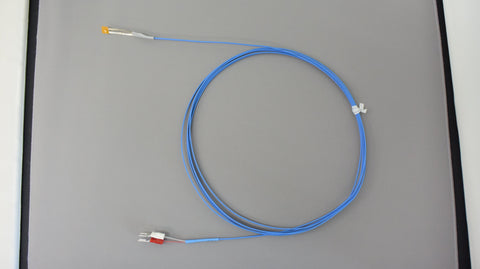

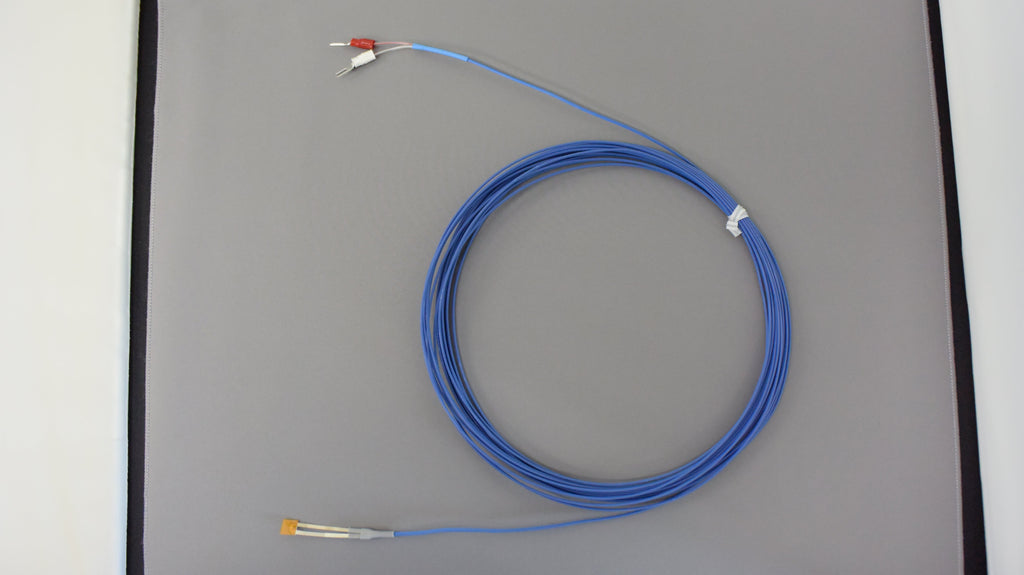

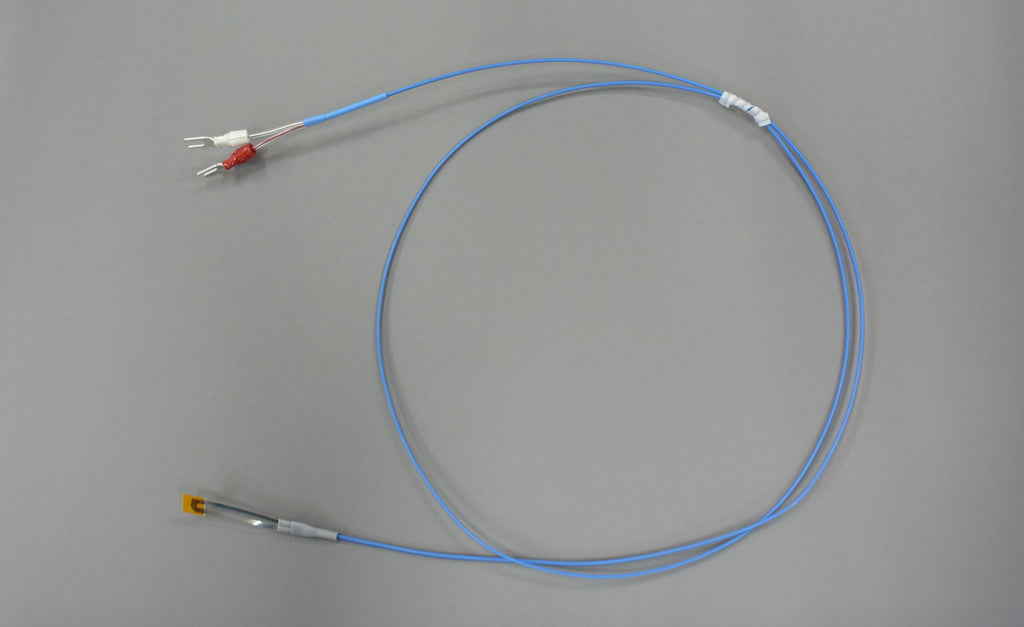

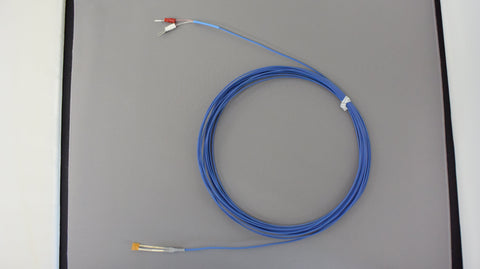

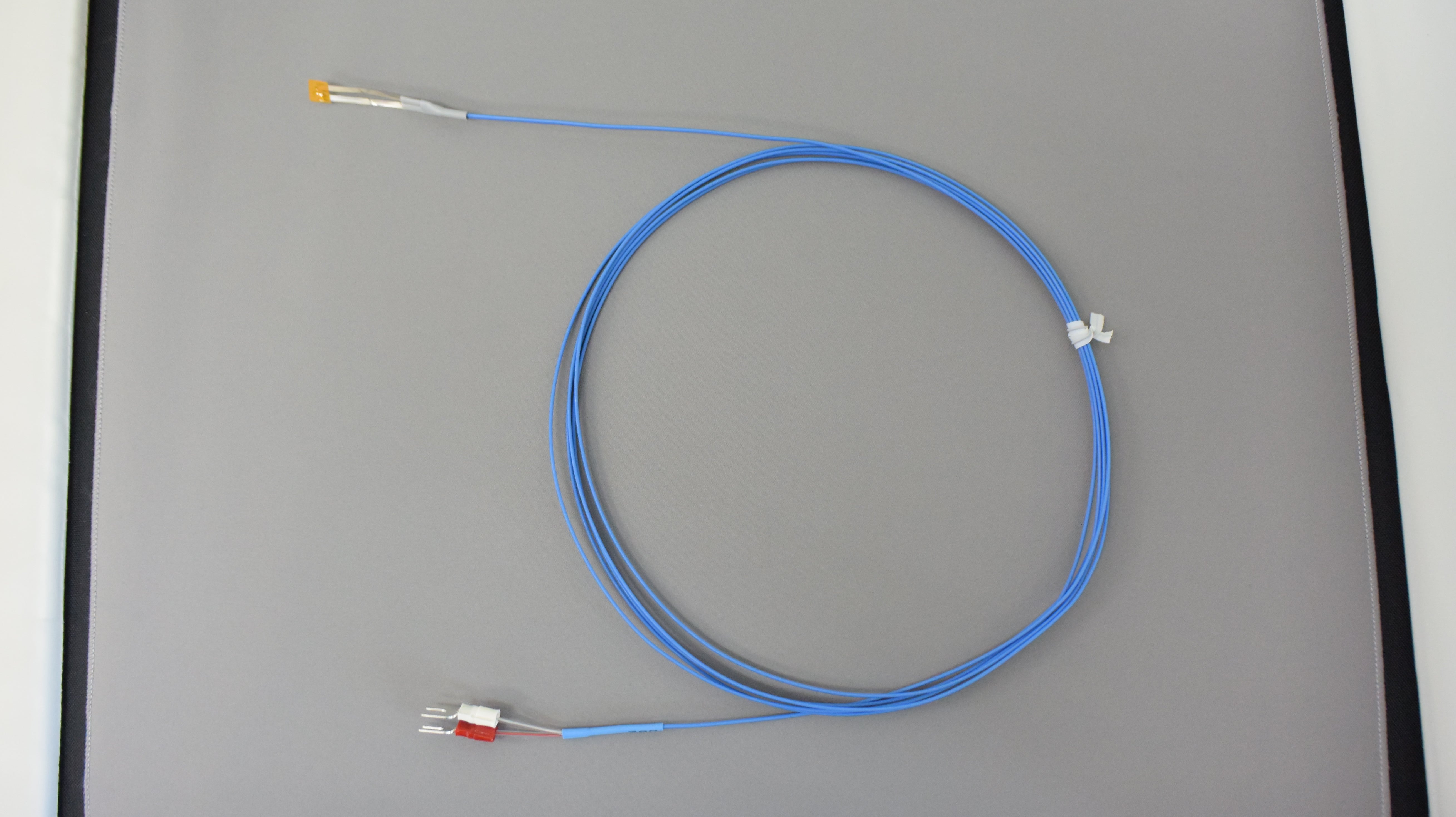

Model No. TH-8297-1 TH-8297-3 TH-8297-10
L(m) 1.0 3.0 10.0
In stock 〇 〇 〇

* Please consult us if other lengths are needed.
