Temperature Sensor Thermocouple (K Type) "Tip Magnet Type

In stock　RoHS2 Compliance　Made-to-order product

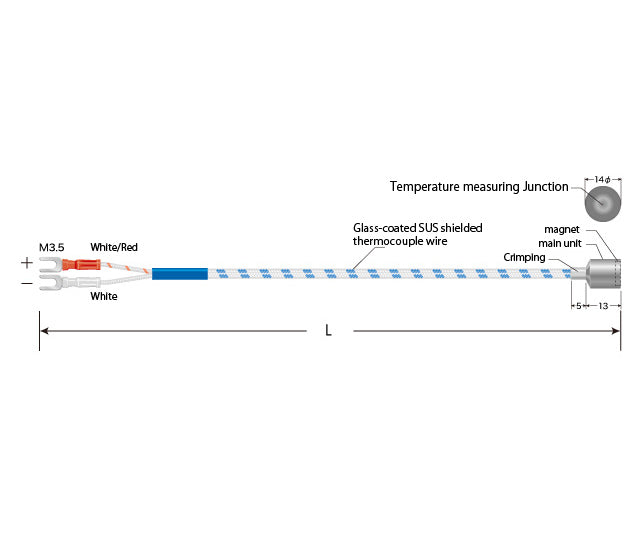

This is a temperature sensor for surface measurement with an integrated magnet at the measuring contact point. The sensor can be attached using the magnet, making it easy to install and remove. It is recommended for temperature measurement on surfaces made of magnetic metals, such as molds.

【Features and Specifications】

• Temperature sensing part only: 400°C / Continuous use limit: 350°C
• Tolerance: Class 2 (±2.5°C or ±0.75%) Wire diameter: 0.32 mm

【Usage】

• Temperature sensor (sold separately) compatible with the digital temperature controller monoOne®-120/200. It can also be used with other temperature control devices.

※This product is to be attached to a temperature controller (sold separately).

[Additional Options]
Other lengths are also available upon request. Please contact us if you have any specific requirements.

Thermocouple wires can be changed from glass-coated to SUS-coated or miniature connectors can be attached to the terminals.
*Other lengths are available upon request. Please contact us for details.

[To change thermocouple wires to SUS sheathing]
Adding SUS sheathing (shielding) improves durability in harsh environmental and usage conditions. In addition, the specifications are strong against electrical noise.

[To install miniature connectors on the terminals]
It can be easily attached to the monoOne+ series. Additionally, it features anti-twist protection to reduce the risk of disconnection.
