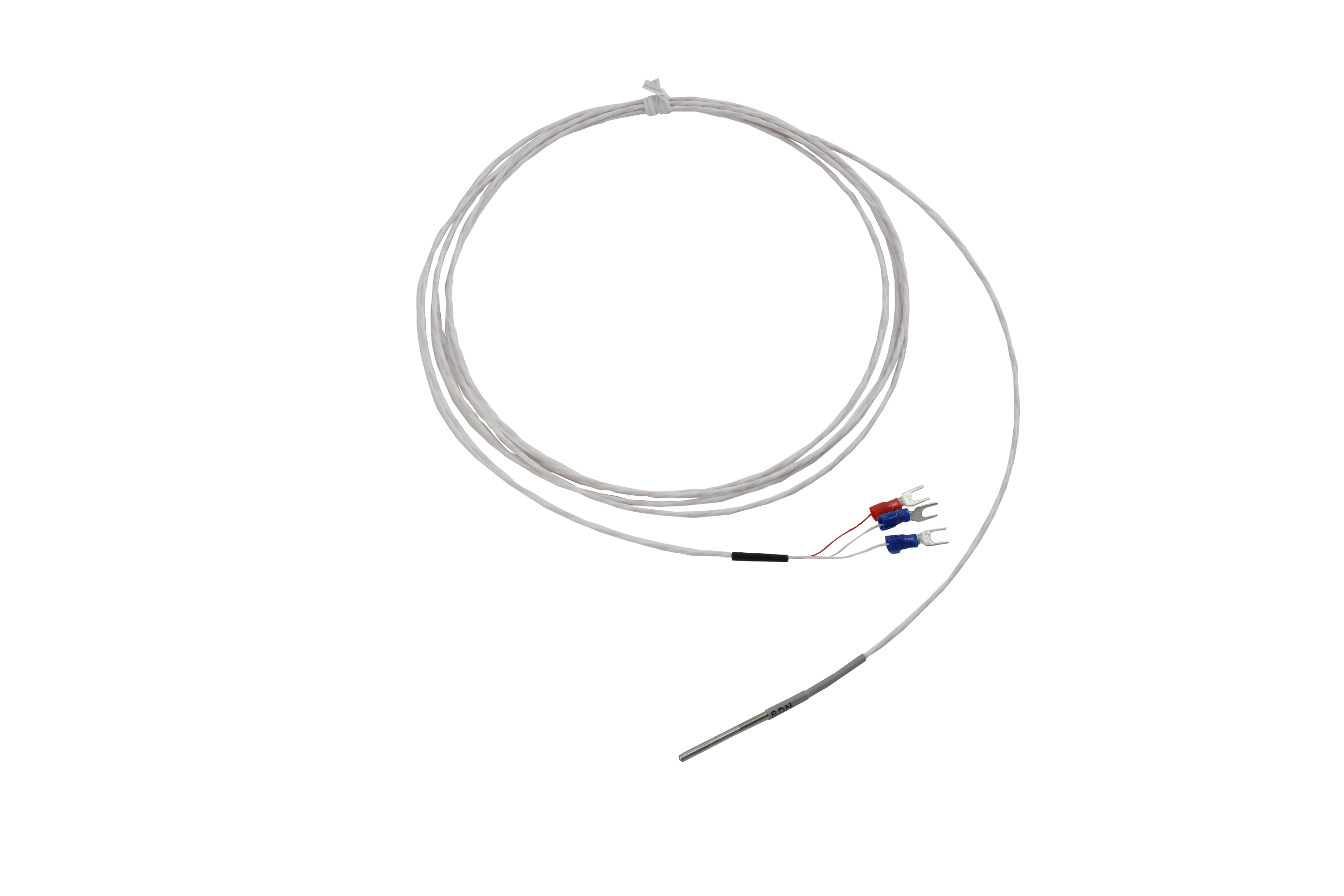

Platinum resistance thermometer Pt100Ω "Sheathed Type"
φ(mm):3.0
Quantity:
Pickup available at 受取店舗名THREEHIGH
Usually ready in 5+ days
Platinum resistance thermometer Pt100Ω "Sheathed Type"
3.0
受取店舗名THREEHIGH
Pickup available, usually ready in 5+ days
224-0023
Kanagawa 横浜市 都筑区東山田4-42-16
Japan

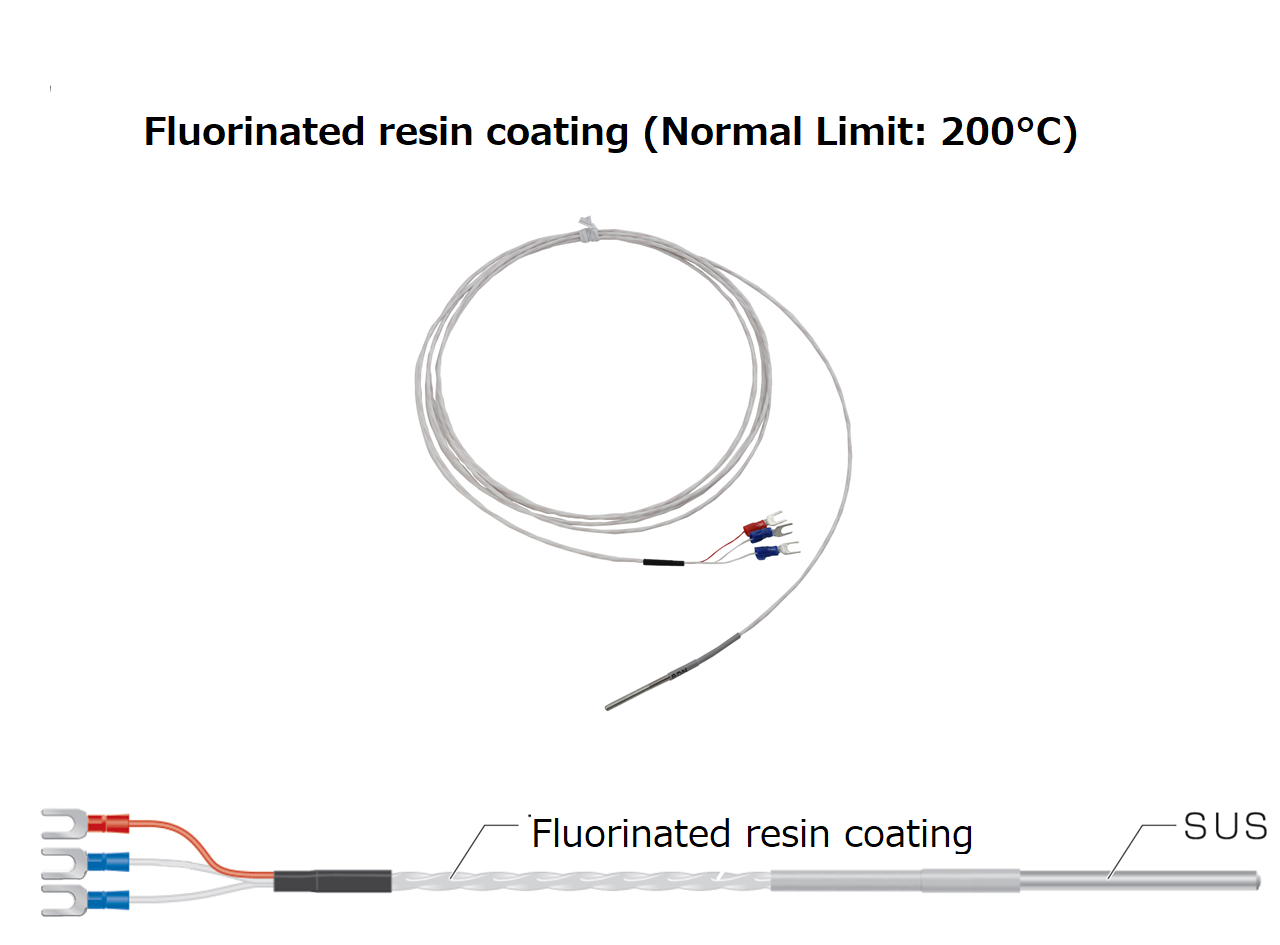

Fluorinated resin coating (Normal Limit: 200°C)
Platinum resistance thermometer Pt100Ω is a type of resistance thermometer that uses the property that the electrical resistance of the metal changes in response to changes in temperature. This sensor uses platinum, which has good temperature characteristics and little change over time, as a temperature sensing element.
* It can't be used with monoOne+.
Heat resistance temperature of cladding material: 200°C, Tolerance: Class B, 3 wired

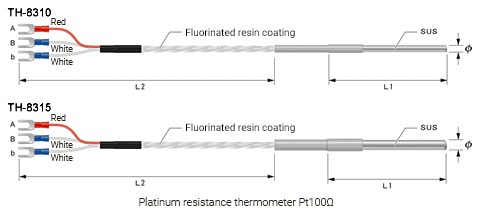

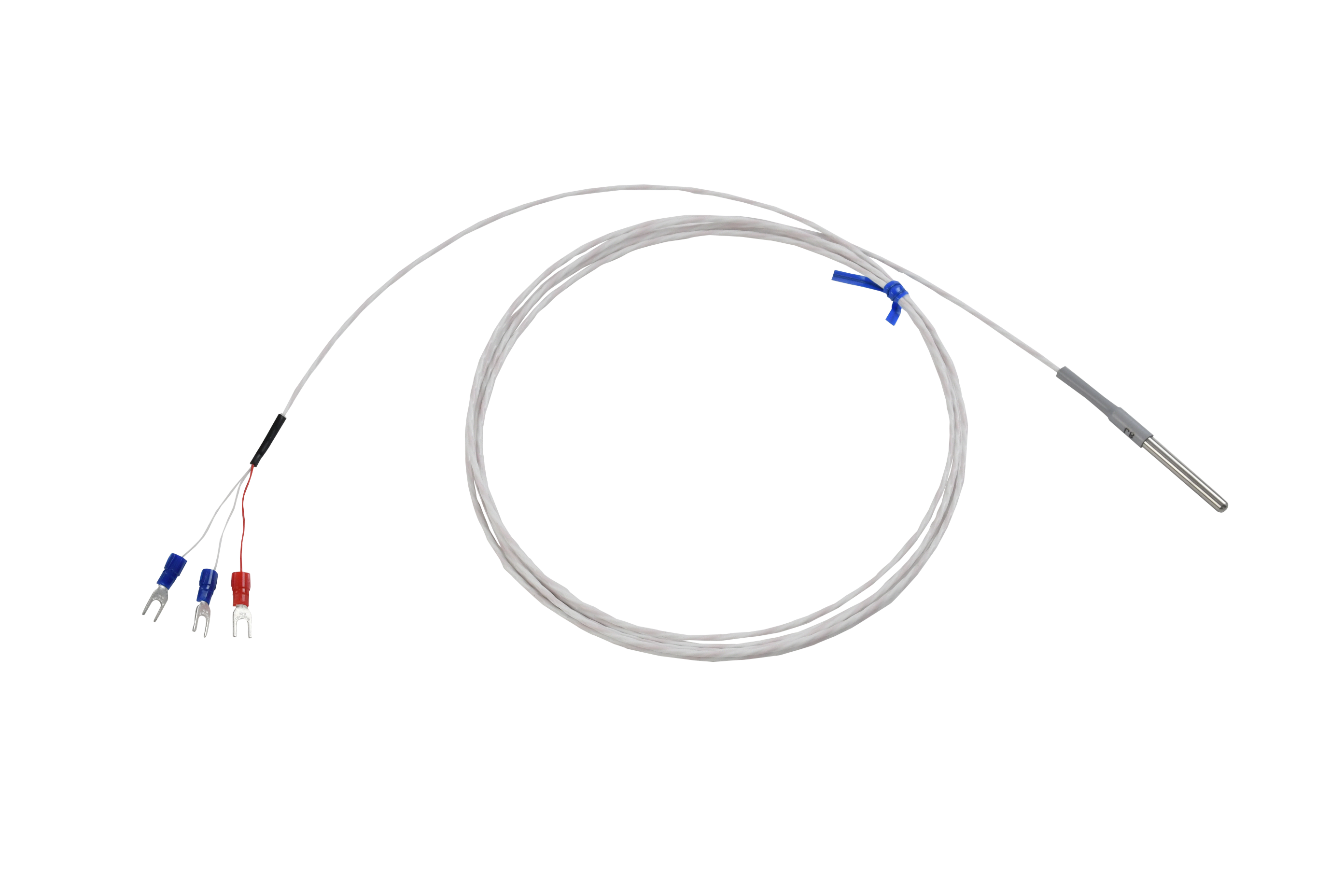

| Model No. | TH-8310 | TH-8315 |
|---|---|---|
| φ(mm) | 3.0 | 4.8 |
| L1(mm) | 50 | 50 |
| L2(m) | 3.0 | 3.0 |
| In stock | 〇 | 〇 |
