Duplex Type (welded tip) (glass coated) Max. operating temp: 250°C, Conductor: 0.32mm
Duplex Type (welded tip) (glass coated) Max. operating temp: 250°C, Conductor: 0.32mm
Class2 / 1 / no attached
受取店舗名THREEHIGH
224-0023
Kanagawa 横浜市 都筑区東山田4-42-16
Japan
The duplex type K thermocouple is the one whose thermocouple element wire is coated with Fluororesin or glass. It is used without protective tube.
Thermocouple K has a linear relationship between temperature and thermoelectric power, and is the most standard thermocouple for industrial use.
This temperature sensor is compatible with the ThreeHigh Digital Temperature Controller monoOne Series.If your temperature controller is compatible with the thermocouple K and Pt100Ω, it can be used.
[Class2]
Max. operating temp: 250°C, Tolerance: Class 2 (±2.5°C or ±0.75%), Conductor: 0.32mm
| Model No. RING TERMINAL: no attached |
TH-8162-1 | TH-8162-2 | TH-8162-3 | TH-8162-5 | TH-8162-10 | TH-8162-20 |
|---|---|---|---|---|---|---|
| Model No. RING TERMINAL: attached |
TH-8162-1-M | TH-8162-2-M | TH-8162-3-M | TH-8162-5-M | TH-8162-10-M | TH-8162-20-M |
| L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
| In stock | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
* Please consult us if other lengths are needed.
[Class1]
Class 1 sensors with ring terminals are sold in sets of 10.
Max. operating temp: 250°C, Tolerance: Class 1 (±1.5°C or ±0.4%), Conductor: 0.32mm

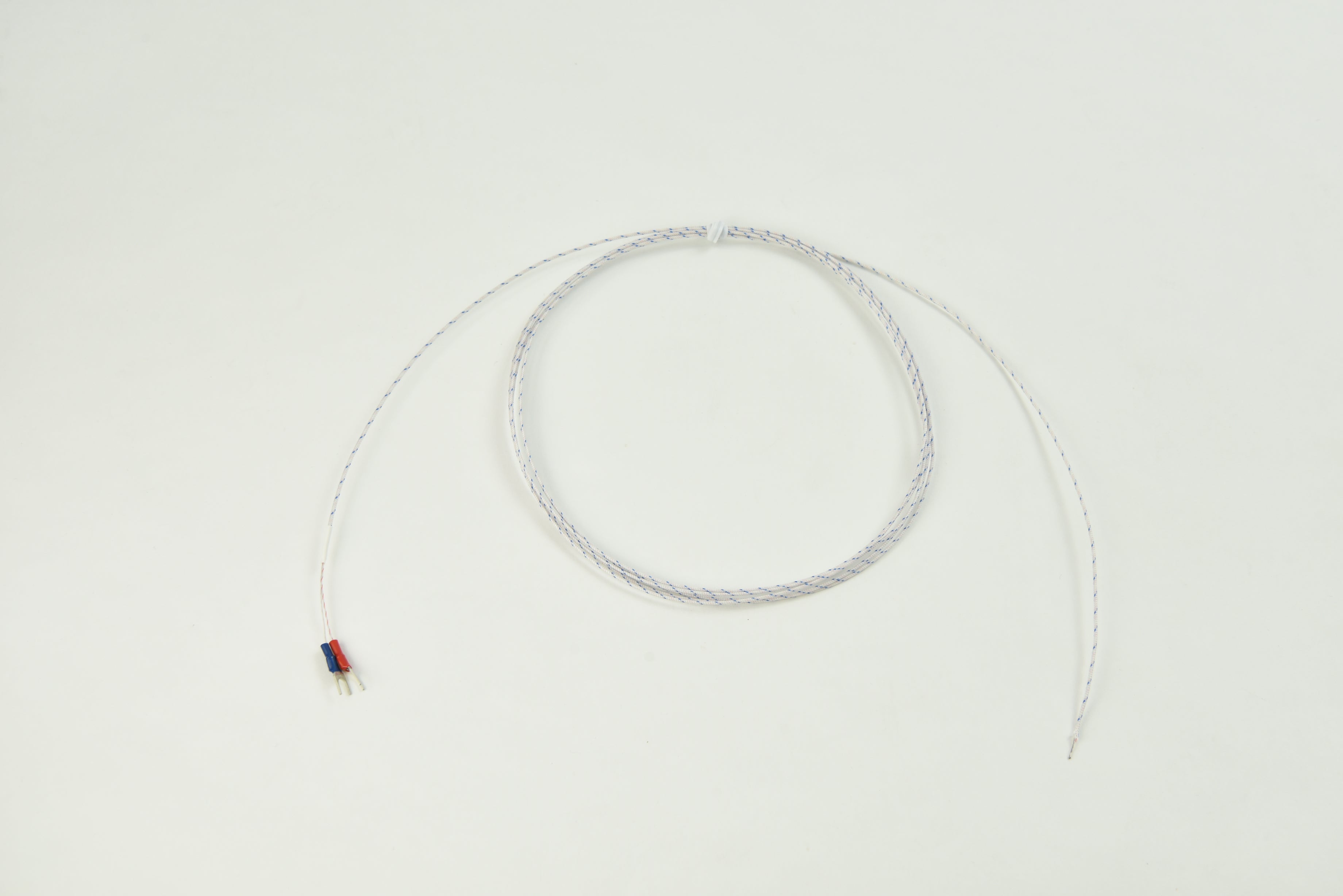

| Model No. RING TERMINAL: no attached |
TH-8296-1 | TH-8296-2 | TH-8296-3 | TH-8296-5 | TH-8296-10 | TH-8296-20 |
|---|---|---|---|---|---|---|

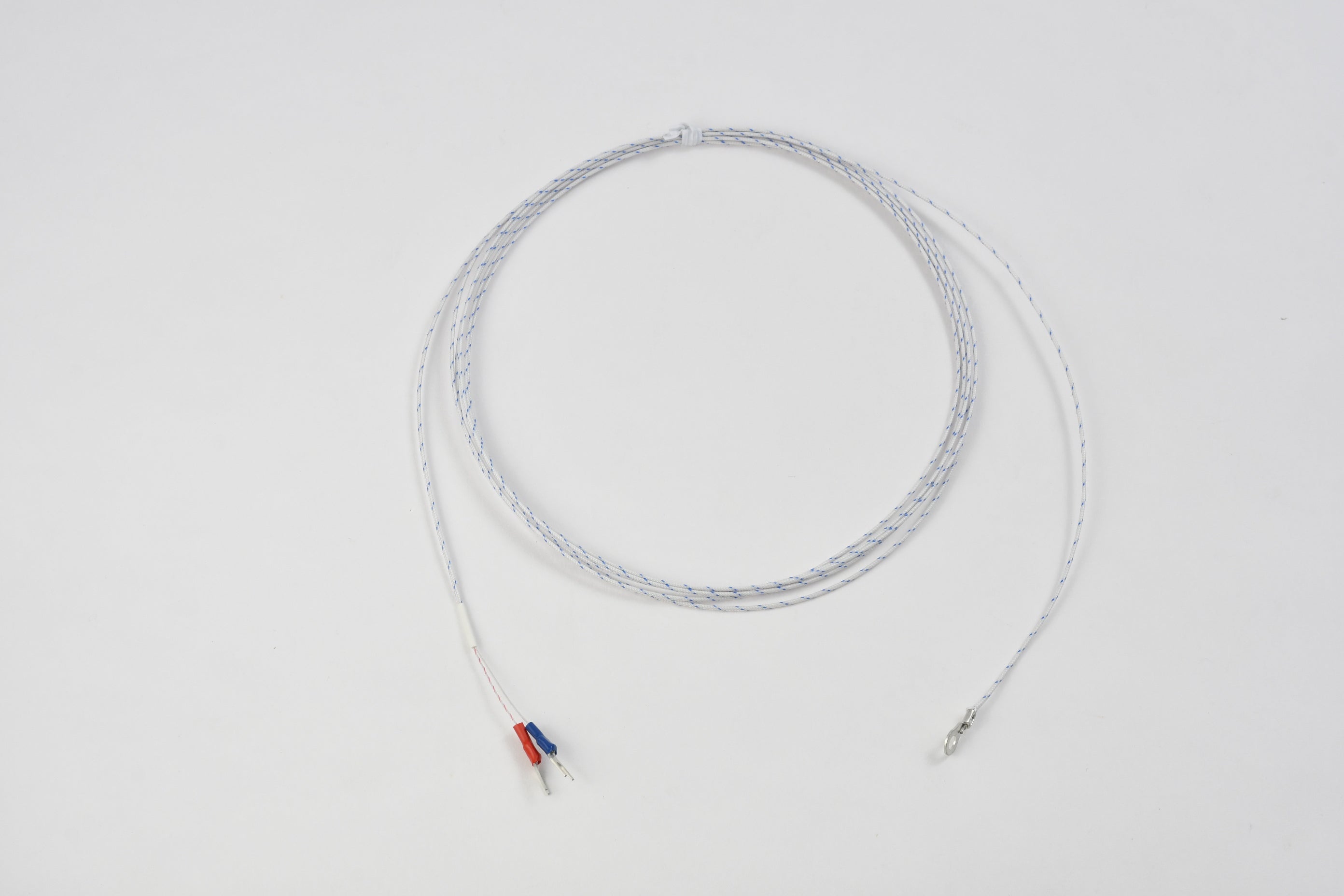

| Model No. RING TERMINAL: attached |
TH-8296-1-M | TH-8296-2-M | TH-8296-3-M | TH-8296-5-M | TH-8296-10-M | TH-8296-20-M |
| L(m) | 1.0 | 2.0 | 3.0 | 5.0 | 10.0 | 20.0 |
| Made-to-order | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
* Please consult us if other lengths are needed.
