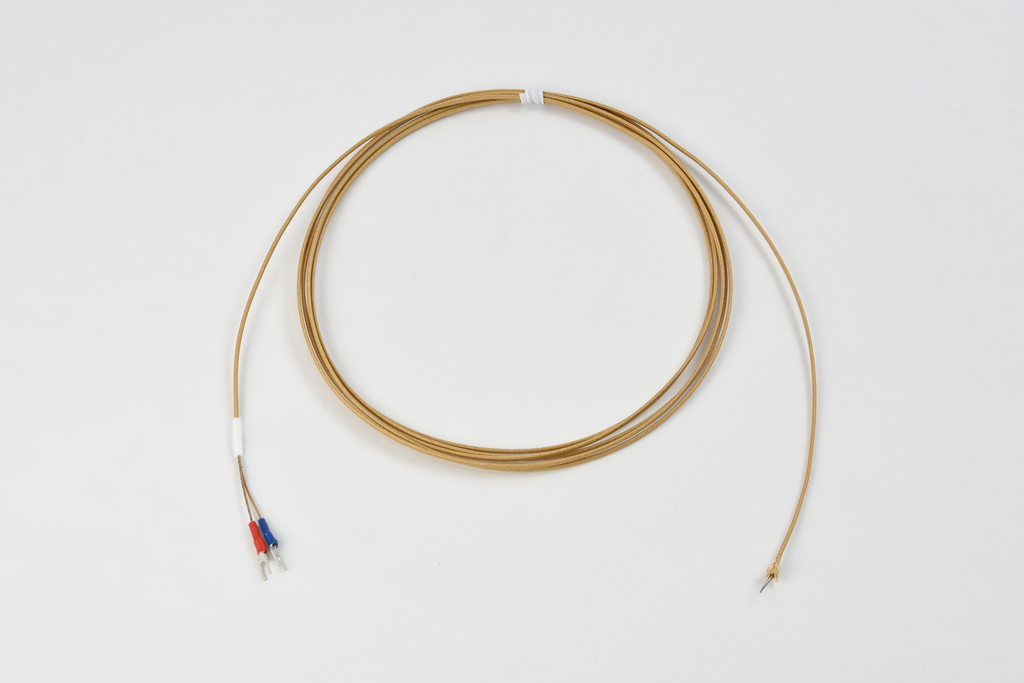

Thermocouple K has a linear relationship between temperature and thermoelectric power, and is the most standard thermocouple for industrial use.
This temperature sensor is compatible with the ThreeHigh Digital Temperature Controller monoOne Series.If your temperature controller is compatible with the thermocouple K and Pt100Ω, it can be used.

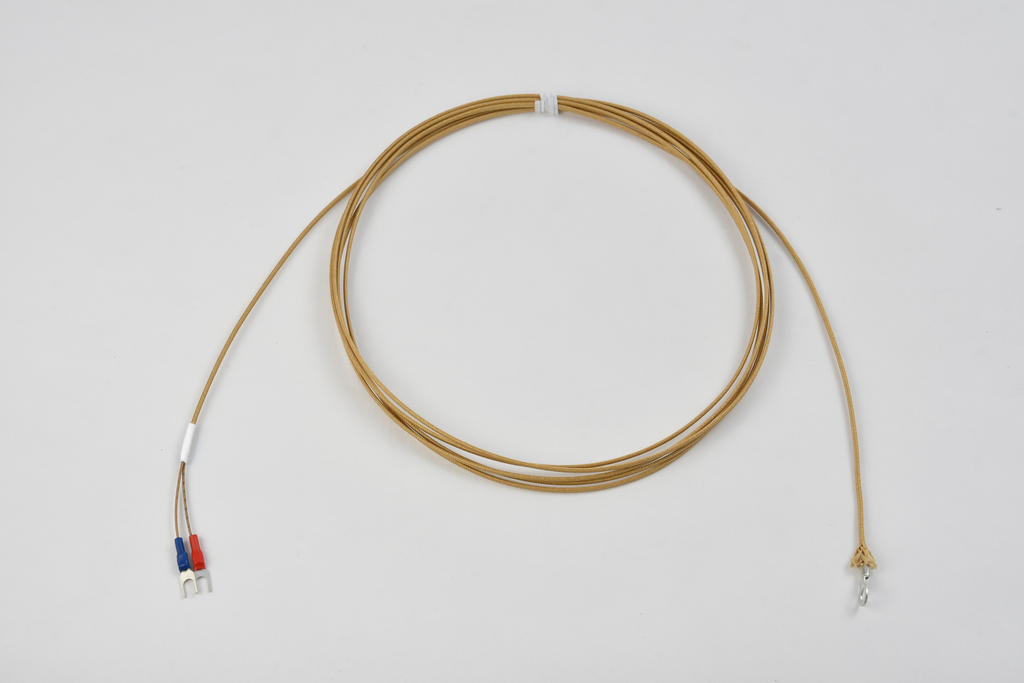

* A round terminal head can be attached to the tip as an option.
In that case, add "-M" to the end of the product code. (+800 yen without tax)
If a round terminal head is attached, the heat-resistant temperature is 200°C.
Normal temperature limit: 400°C, Tolerance: Class 1 (±1.5°C or ±0.40%), Wire diameter: 0.32mm
* Please consult us if other lengths are needed.
